OUR PRODUCTS
Discover our comprehensive range of EMC, RF and microwave products supporting your laboratory and field testing activities.

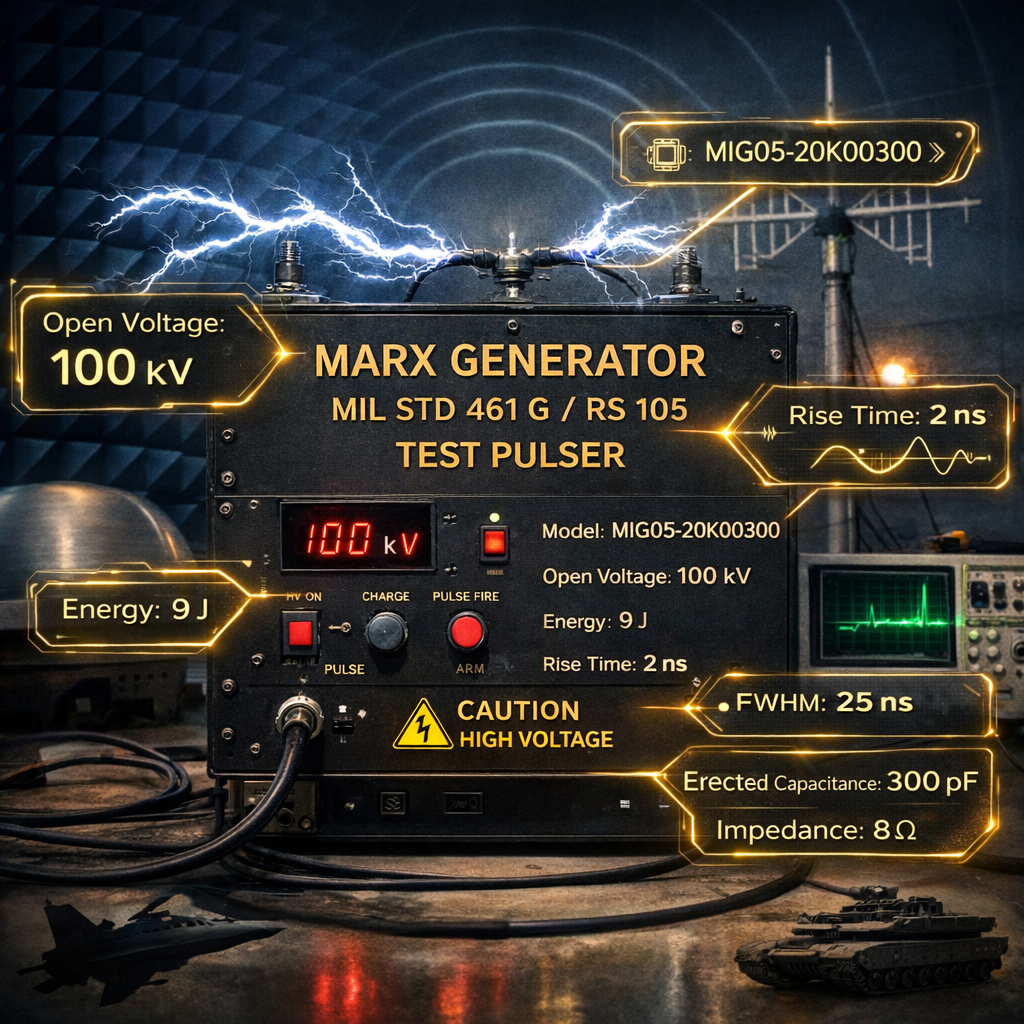

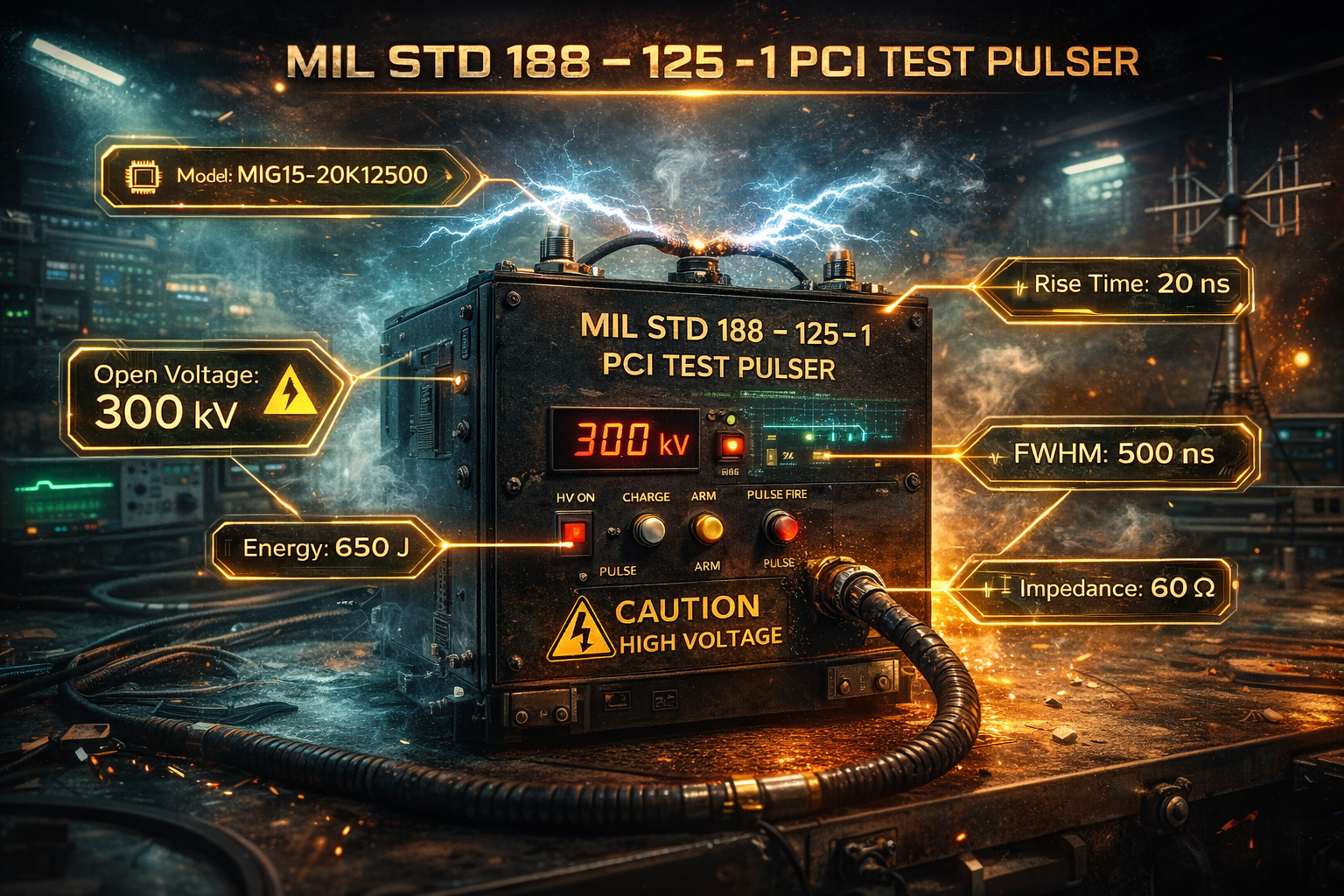

MARX GENERATOR
Since 2002, EMC has been a trusted manufacturer of advanced EMI/EMC test equipment, including high-voltage power line filters, anechoic chambers, and low- to high-frequency antennas. We specialize in high-power, high-voltage Marx Generators with low-inductance designs, delivering faster rise times, higher peak voltages, and superior load efficiency.
EMC Marx Generators are engineered for demanding pulsed-power applications such as HPM, test & evaluation, triggering, and advanced materials research.
Power Line Filter and Signal Line Filter

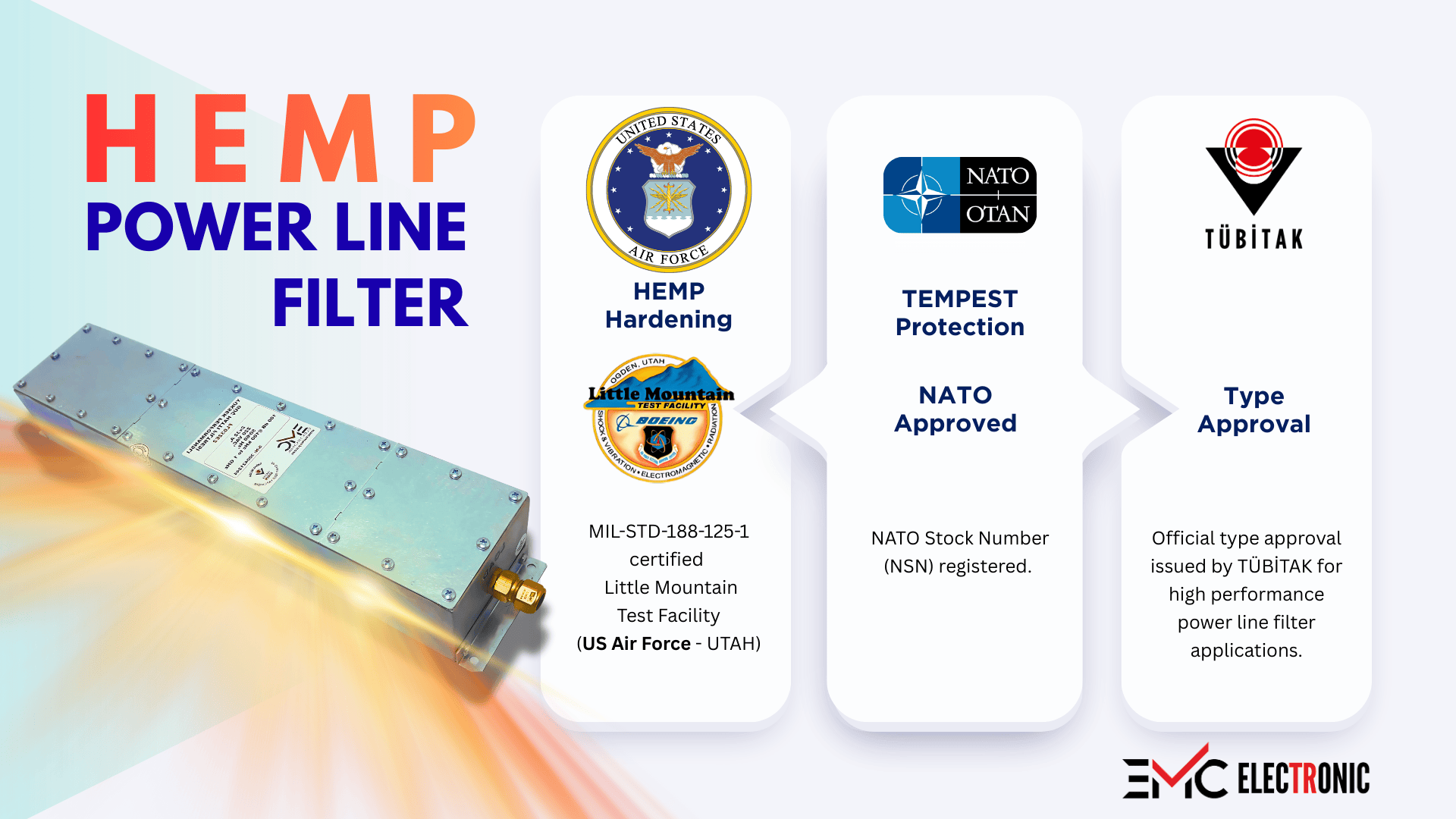

Power Line Filter
Power line filters are used to prevent potential information
leakage through power lines by blocking unwanted electromagnetic signals.
They typically provide at least 60 dB attenuation in the 100 kHz – 1 GHz range, as described in AMSG 719G or the national equivalent MY 401-4.
Signal Line Filter
Signal line filters are used to prevent information leakage
through telephone, intercom, modem, and data lines.
According to NATO AMSG 719G, the filter must provide minimum 60 dB attenuation from 100× the operating frequency of the line up to 1 GHz.
TGH-16 Tempest Power Line Filter
Technical Specifications
| MODEL | TGH-16 |
| STANDARDS | MIL STD 220 |
| PERFORMANCE | 60 dB @ 100 kHz – 1 GHz |
| POWER FREQUENCY | 50 / 60 Hz |
| RATED VOLTAGE | 230 VAC |
| RATED CURRENT | 16 A |
| MAX. CURRENT | 22.5 A for 15 min. |
| DIMENSIONS (mm) | 440 x 105 x 50 |
PCF-3 Portable Tempest Power Line Filter
Technical Specifications
| MODEL | PCF-3 |
| STANDARDS | MIL STD 220 |
| PERFORMANCE | 60 dB @ 100 kHz – 1 GHz |
| POWER FREQUENCY | 50 / 60 Hz |
| RATED VOLTAGE | 230 VAC |
| RATED CURRENT | 3 A |
| MAX. CURRENT | 5 A for 15 min. |
| DIMENSIONS (mm) | 177 x 50 x 38 |
FL100E4 Tempest Power Line Filter
Technical Specifications
| MODEL | FL100E4 |
| STANDARDS | MIL STD 220, EN 55017 |
| PERFORMANCE | 100 dB @ 100 kHz – 1 GHz |
| POWER FREQUENCY | 50 / 60 Hz |
| RATED VOLTAGE | 380 VAC ±10% (Line to Line) |
| RATED CURRENT | 4x100 A |
| MAX. CURRENT | 130 A for 10 min. |
| DIMENSIONS (mm) | 650 x 300 x 100 |
FL005DC Tempest Power Line Filter
Technical Specifications
| MODEL | FL005DC |
| STANDARDS | MIL STD 220, EN 55017 |
| PERFORMANCE | 60 dB @ 100 kHz – 1 GHz |
| POWER FREQUENCY | DC |
| RATED VOLTAGE | 48 VDC |
| RATED CURRENT | 2x5 A |
| MAX. CURRENT | 7.5A for 10 min. |
| DIMENSIONS (mm) | 350 x 105 x 60 |
USB Data Filter
Data Line Filter USB10X, was designed for USB 2.0 ports for shielded enclosure/box applications. This filter provides at least 60 dB attenuation in the 1 GHz – 6 GHz frequency range.
Technical Specifications
| MODEL | USB10X |
| PERFORMANCE | 60 dB @ 2 GHz – 6 GHz |
| DIMENSIONS (mm) | 120 x 110 x 30 |
SM5-3.4K Tempest Signal Line Filter
Technical Specifications
| MODEL | SM5-3.4K |
| NUMBER OF LINES | 5 pairs |
| PERFORMANCE | 60 dB @ 30 kHz – 1 GHz |
| CUT-OFF FREQUENCY | 13 kHz (3 dB) |
| RATED VOLTAGE | 400 VDC |
| RATED CURRENT | 120 A |
| DIMENSIONS (mm) | 140 x 115 x 23 |
EMC CHAMBERS
EMC Electronic delivers high-performance RF & EMC test environments engineered for absolute isolation and precision.
From full and semi-anechoic chambers to shielded rooms and custom RF boxes, every structure is built with superior shielding, optimized absorber performance, and optional acoustic insulation for complete environmental control.
Used worldwide for EMC/EMI testing, microwave measurements, TEMPEST-grade information security, and radiological imaging rooms — our chambers provide uncompromising reliability where accuracy matters most.
Trusted worldwide. Built to perform.
Anechoic Chamber
Technical Specifications
| MODEL | TYO3M |
| FREQUENCY RANGE | 10 kHz – 18 GHz |
| MEASURING DISTANCE | 3 m |
| EXTERNAL DIMENSIONS (WxHxD) | 9.5 x 6 x 5.6 m |
| STANDARDS | CISPR 16-1-4, IEC/EN 61000-4-3 |
| SHIELDING PERFORMANCE | SE > 100 dB |
RF SHIELDED BOX / EK454545
Technical Specifications
| MODEL | EK454545 |
| FREQUENCY | 800 MHz – 6 GHz |
| PERFORMANCE | SE > 70 dB |
| DIMENSIONS (WxHxD) [cm] | 45 x 45 x 45 |
RF SHIELDED BOX / EK804545
Technical Specifications
| MODEL | EK804545 |
| FREQUENCY | 800 MHz - 6 GHz |
| PERFORMANCE | SE > 70 dB |
| DIMENSIONS (WxHxD) [cm] | 80 x 45 x 45 |
Sub terahertz Absorber
EMC Electronic uses different materials to provide excellent absorption performance at frequencies from 0.07 GHz to 330 GHz. Sub-Terahertz absorbers are produced with balanced formulate of carbon black and fire-retardant materials in pyramidal shape of polyurethane foam base material. It is ideal to suppress side lobe of antennas and isolate the antennas.
Performance Specifications
| Height (") | 10 GHz | 18 GHz | 26 GHz | 40 GHz | 60 GHz | 90 GHz | 140 GHz | 220 GHz | 330 GHz |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 4 dB | 6 dB | 7 dB | 10 dB | 15 dB | 20 dB | 25 dB | 30 dB | 30 dB |
| 1 | 6 dB | 10 dB | 12 dB | 17 dB | 20 dB | 25 dB | 30 dB | 35 dB | 35 dB |
| 2 | 15 dB | 20 dB | 23 dB | 28 dB | 30 dB | 35 dB | 35 dB | 35 dB | 35 dB |
| 3 | 25 dB | 30 dB | 35 dB | 43 dB | 45 dB | 45 dB | 45 dB | 40 dB | 40 dB |
| 4 | 35 dB | 38 dB | 40 dB | 45 dB | 45 dB | 45 dB | 45 dB | 40 dB | 40 dB |
Minimum absorption performance values
Polyurethane Absorber
RF Pyramid Absorber is obtained by loading polyurethane foam with carbon and fire-retardant chemicals to absorb electromagnetic energy. It has excellent reflection loss performance over a wide frequency range.
Absorber performance is measured according to NRL Arch technique.
Fire resistance performance meets NRL 8093 I, II, III standards.
Technical Specifications
| MODEL | THP-300 |
| FREQUENCY RANGE | 0.5 GHz - 40 GHz |
Polypropylene Absorber
RF Pyramid Absorber is obtained by loading polypropylene foam with carbon and fire-retardant chemicals to absorb electromagnetic energy. It has excellent reflection loss performance over a wide frequency range.
Absorber performance is measured according to NRL Arch technique.
Fire resistance performance meets NRL 8093 I, II, III standards.
Technical Specifications
| MODEL | THP-300 |
| FREQUENCY RANGE | 0.5 GHz - 40 GHz |
Rod Antenna
Rod antenna is a vertical monopole designed for low-frequency electric field generation and measurement. Commonly used in EMC laboratories, it provides reliable E-field performance in the 9 kHz–30 MHz range, supporting standards such as MIL-STD-461 (RS101/RS103). Its simple ground-referenced structure makes it ideal for applications where loop antennas are insufficient, delivering stable and efficient low-frequency E-field operation.
Technical Specifications
| MODEL | RA10K30M |
| FREQUENCY RANGE | 9 kHz – 30 MHz |
| CONNECTOR TYPE | N |
| ANTENNA FACTOR | 10 dB ± 1.5 dB |
| CHARGING VOLTAGE | 9 VDC |
Biconical Antenna
Biconical antenna is used to measure radiated emissions in the 30 MHz – 200/300 MHz frequency range according to standards such as CISPR, MIL, and ETSI. The antenna consists of a balun and dual-cone elements. Upon request, it can also be designed as a transmitting antenna for immunity tests.
Technical Specifications
| MODEL | BA30M200M |
| FREQUENCY RANGE | 30 MHz – 200/300 MHz |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | N |
Bilog Antenna
Bilog Antenna is a hybrid antenna combining a Logarithmic Periodic Antenna and a broadband balun. It is used to measure radiated emissions from 30 MHz to 1 GHz according to various standards with a single antenna. Wooden or composite antenna masts can be supplied as optional accessories. Its usable frequency range can be extended up to 3 GHz.
Technical Specifications
| MODEL | BLA30M1G |
| FREQUENCY RANGE | 30 MHz – 1 GHz |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | N |
Large Horn Antenna ( 200 MHz - 1 GHz )
Large Horn Antenna is used to measure radiated emissions in the 200 MHz – 1 GHz frequency range according to standards such as CISPR, ETSI, and especially MIL-STD-461. A wooden antenna mast can be supplied as an optional accessory.
Technical Specifications
| MODEL | HA200M1G |
| FREQUENCY RANGE | 200 MHz – 1 GHz |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | N |
Double Ridge Horn Antenna
Double Ridge Horn Antenna is used to measure radiated emissions in the 1 GHz – 18 GHz frequency range according to standards such as CISPR, ETSI, and MIL-STD-461. A wooden antenna mast can be supplied as an optional accessory.
Technical Specifications
| MODEL | HA1G18G |
| FREQUENCY RANGE | 1 GHz – 18 GHz |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | N |
Halka Sensör / Loop Sensor
Loop Sensor RLRE101 is used to measure radiated magnetic field emissions according to MIL-STD-461.
Technical Specifications
| MODEL | RLRE101 |
| NUMBER OF TURNS | 36 |
| FREQUENCY RANGE | 30 Hz – 500 kHz |
| DIAMETER | 133 mm |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | BNC |
Radiating Loop & Field Monitor Loop Antenna
Radiating Loop RL120 is used to generate magnetic fields for RS101 tests according to MIL-STD-461.
Technical Specifications
| MODEL | RL120 |
| FREQUENCY RANGE | 30 Hz – 500 kHz |
| NUMBER OF TURNS | 20 |
| MAG. FIELD AT 5 cm | 159.55 dBpT @ 1 A |
| DIAMETER | 120 mm |
| MAX. CURRENT | 16 A |
| CONNECTOR TYPE | Banana jack |
Field Monitor Loop Antenna SL040 is used to measure the magnetic field generated in the RS101 calibration procedure according to MIL-STD-461.
Technical Specifications
| MODEL | SL040 |
| NUMBER OF TURNS | 51 |
| FREQUENCY RANGE | 30 Hz – 100 kHz |
| DIAMETER | 40 mm |
| ANTENNA FACTOR | Individually calibrated |
| CONNECTOR TYPE | BNC |
Standard Gain Horn Antenna
Standard Gain Horn Antenna is used to measure radiated emissions or to generate radiated fields. It can be designed for the 300 MHz – 40 GHz frequency range with 10, 15, or 20 dB gain upon request. A wooden antenna mast can be supplied as an optional accessory.
Technical Specifications
| MODEL | SH284S10 |
| FREQUENCY RANGE | 2.6 GHz – 3.95 GHz |
| CONNECTOR TYPE | SMA |
| ANTENNA FACTOR | Individually calibrated |
| GAIN | 10 dB |
LISN: Line Impedance Stabilization Network
A Line Impedance Stabilization Network (LISN) is connected between the Equipment Under Test (EUT) and the power source during conducted emission measurements.
It provides a stable, standardized line impedance for the EUT, routes unwanted RF noise generated by the EUT to the EMI receiver, and prevents noise coming from the mains supply from reaching the receiver.
At EMCTurkey, we manufacture LISNs with current ratings from 5 A to 200 A per line, fully compliant with the required EMC standards.
LISN / LS032A2
Technical Specifications
| MODEL | LS032A2 |
| STANDARD | CISPR 16 – 1 – 2 |
| FREQUENCY | 150 kHz – 30 MHz |
| IMPEDANCE | 50 µH // 50 Ω |
| CURRENT & VOLTAGE | 2 × 32 A, 230 VAC |
LISN / LS200A1
Technical Specifications
| MODEL | LS200A1 |
| STANDARD | CISPR 16 – 1 – 2 |
| FREQUENCY | 150 kHz – 30 MHz |
| IMPEDANCE | 50 µH // 50 Ω |
| CURRENT & VOLTAGE | 1 × 200 A, 500 VAC |
LISN / LS100D1
Technical Specifications
| MODEL | LS100D1 |
| STANDARD | CISPR 25 |
| FREQUENCY | 100 kHz – 100 MHz |
| IMPEDANCE | 5 µH // 50 Ω |
| CURRENT & VOLTAGE | 1 × 200 A, 1000 VDC |
LISN ( TRİFAZE )
Technical Specifications
| MODEL | LS032A4 |
| STANDARD | CISPR 16 – 1 – 2 |
| FREQUENCY | 150 kHz – 30 MHz |
| IMPEDANCE | 50 µH // 50 Ω |
| CURRENT & VOLTAGE | 4 × 32 A, 400 VAC |
LISN (1-phase)
Technical Specifications
| MODEL | LS016A2 |
| STANDARD | CISPR 16 – 1 – 2 |
| FREQUENCY | 9 kHz – 30 MHz |
| IMPEDANCE | (50 µH + 5 Ω) // 50 Ω |
| CURRENT & VOLTAGE | 2 × 16 A, 230 VAC |
CDN
CDN is used to inject the disturbing RF signal onto the cables of the EUT during conducted immunity testing according to EN 61000-4-6. Upon request, we can manufacture M, S, AF, and T type CDNs.
Get a QuoteTransient Limiter
Transient Limiter nedir?
Transient Limiter, kablo üzerinden yayılan emisyon ölçümlerinde LISN
kaynaklı yüksek seviyeli ani işaretlere karşı ölçüm alıcısının RF girişini
korumak için kullanılır. Ayrıca düşük frekanslı sinyallerin ölçüm alıcısı
üzerindeki etkilerini önleyen yüksek geçiren filtreye
sahiptir. Konnektör tipi ve araya girme kaybı isteğe göre
değiştirilebilir.
Transient Limiter, is used to protect RF input of the measuring receiver
against high-level transients caused by LISN in conducted emission
measurements. In addition, it has a high pass filter that prevents the effects
of low frequency signals on the measuring receiver. Connector type and
insertion loss is changeable upon request.
|
MODEL |
TL9K30M |
|
|
FREQUENCY RANGE |
9 kHz – 30 MHz |
|
|
INSERTION LOSS |
10 dB ± 0.5 dB |
|
|
CONNECTOR TYPE |
N |
|
|
|
||
Absorbing Clamb
Absorbing Clamp nedir?
Yutucu Kelepçe, ev aletleri ve elektrikli aletler gibi test edilen
cihazların güç kablolarından yayılan istenmeyen bozulma gücünü ölçmek için
kullanılır. Bozulma gücü P [dBpW], EMI alıcısında okunan gerilim değerine
[dBμV], kelepçe faktörü CF [dBpW/μV] eklenerek hesaplanır.
Absorbing Clamp, is used to measure disturbance power radiated through the
power cables of tested devices such as domestic appliances and
electrical tools. The disturbance power P [dBpW], is
calculated by adding the clamp factor CF [dBpW/μV] to
the reading voltage at the EMI receiver [dBμV].
|
MODEL: AC301 |
|||
|
FREQUENCY RANGE |
30 Hz – 100 kHz |
RECEIVER IMPEDANCE |
50 Ω |
|
EQUIPMENT UNDER TEST CURRENT |
30 A |
CONNECTOR TYPE |
N |
|
DIAMETER OF POWER CABLE |
20 mm |
STANDARD |
EN 55016-1-3 |
|
|
|||
Voltage Probe
Voltage Probe nedir?
Test edilen ekipman şebekeden yüksek akım
çekiyorsa (örneğin: > 200 A), bu akımlarda ticari LISN bulunamıyorsa ya da
ekipman laboratuvara taşınamıyorsa bu durumlarda kablo yoluyla yayılım
deneylerinde gerilim probu kullanılabilir. Elektrik hatlarına
doğrudan bağlantı yapıldığı için dikkat edilmelidir.
Gerilim probu yayılan emisyonu azalttığı için kalibrasyon faktörleri
gereklidir.
Voltage probe is used at
conducted emisison measurement which equipment under test requires
high input current (for example: > 200 A) and commercial LISNs may not be
available. A direct connection to the power lines is required and care must be
taken to establish a reference ground for the measurements. The
probe attenuates the voltage so calibration factors are
required.
|
MODEL |
VT01 |
|
|
FREQUENCY RANGE |
10 kHz – 30 MHz |
|
|
INSERTION LOSS |
2 dB |
|
|
CONNECTOR TYPE |
BNC |
|
|
|
||
CMAD (COMMON MODE ABSORPTION DEVICE )
CMAD, ev
aletleri ve elektrikli aletler gibi test edilmiş cihazların kabloları üzerinden
istenmeyen ortak mod akımlarını önlemek için kullanılır.
CMAD, is used
to prevent unwanted common mode currents through cables of tested devices such
as domestic appliances and electrical tools.
|
MODEL: CMAD301 |
|||
|
FREQUENCY RANGE |
30 MHz – 1 GHz |
RECEIVER IMPEDANCE |
50 Ω |
|
EQUIPMENT UNDER TEST CURRENT |
30 A |
CONNECTOR TYPE |
N |
|
DIAMETER OF POWER CABLE |
20 mm |
STANDARD |
EN 55016-1-3 |
|
|
|||
High Voltage Probe
HV koaksiyel
prob, MIL STD 461'e göre CS115 ve CS116 kalibrasyonu yapılırken kabloya enjekte
edilen darbeyi ölçmek için tasarlanmıştır. 500x gerilim bölme oranına sahip
olup kullanılabilir bant genişliği 400 MHz'dir.
HV coaxial
probe/attenuator was designed to measure injected pulse to cable when
performing CS115 and CS116 calibration according to MIL STD 461. It has 500x
voltage divider ratio. Its usable bandwidth is 400 MHz.
|
MODEL |
HV500X |
||
|
FREQUENCY RANGE |
DC – 500 MHz |
CONNECTOR TYPE |
N / BNC |
|
INSERTION LOSS |
54 dB ± 3 dB |
VOLTAGE RATIO |
500 : 1 |
|
|
|||
Calibration Fixture
Kalibrasyon
Fikstürü, MIL STD 461'e göre CS114, CS115 ve CS116 kalibrasyonu yapılırken
kabloya enjekte edilen bozulma sinyalini ölçmek için tasarlanmıştır.
Kullanılabilir bant genişliği 400 MHz'dir.
Calibration Fixture was
designed to measure injected disturbance signal to cable when performing CS114, CS115
and CS116 calibration according to MIL STD 461. Its usable bandwidth is
400 MHz.
|
MODEL |
KF114 |
|
|
FREQUENCY RANGE |
DC – 500 MHz |
|
|
VSWR |
< 3.5 |
|
|
CONNECTOR TYPE |
N |
|
|
|
||
ESD Current Target
Koaksiyel Akım Hedefi, MIL STD 461 veya EN 61000-4-2'ye göre kalibrasyon
gerçekleştirirken ESD jeneratörlerinin deşarj akımını ölçmek için
tasarlanmıştır. ESD akım hedefini koaksiyel konnektöre
dönüştüren bir adaptör, zayıflatıcı ve RF kablo istek üzerine sağlanır.
Coaxial Current Target was designed to measure the discharge current of ESD
generators when performing calibration according to MIL STD 461 or EN
61000-4-2. An adaptor which convert the current target
to coaxcial connector, attenuator and RF cable are supplied
upon request.
|
MODEL |
ESDTRGT |
|
|
Transfer Impedance @ 1 A (Zsys) |
0.19 ( Target + 20 dB
Attenuator + Cable Chain ) |
|
|
NOMINAL VALUE |
± 0.5 dB @ up to 1 GHz ± 1.2 dB @ 1 GHz to 4
GHz |
|
|
CONNECTOR TYPE |
SMA |
|
|
|
||
Isolation Transformer
İzolasyon Trafosu nedir? Hangi amaçla kullanılır?
İzolasyon Trafosu CS 101 deneyinde
osiloskobun besleme hattında topraklamanın izole edilmesi için kullanılır.
|
MODEL |
TR11 |
|
MAX. CURRENT |
10 A |
|
|
|
Feedthru Capacitor
Feedthru Kapasitör nedir? Hangi amaçla kullanılır?
Feedthru kapasitör CS 101 deneyinde bozucu işaretin şebeke
tarafına geçmesini engellemek için kullanılır.
|
MODEL |
FC10 |
|
|
|
Current Shunt
Current Shunt nedir? Hangi amaçla kullanılır?
Current Shunt, CS101 deneyinde uygulanacak bozucu işareti
kalibre etmek için kullanılır.
|
MODEL |
300WRS |
|
PERFORMANCE |
0,5 Ω |
|
|
|
Coupling Transformer
Coupling Transformer nedir? Hangi amaçla kullanılır?
Coupling Transformer CS101 deneyinde bozucu işareti deneye
giren cihazın besleme hattına bulaştırmak için kullanılır.
Calibration Load 5 oHm
Calibration Load nedir? Hangi amaçla kullanılır?
Calibration Load 5 Ω CS106 deneyinde darbe şeklini doğrulamak
için kullanılır.
|
PERFORMANCE |
5 Ω |
|
|
|
High Resolution Programmable Timer/Counter | Philips | PM6680B
